                    Our best selling interconnect deserves a unique look of its own. Deep, powerful bass with even tonal balance from top to bottom. Boundaries disappear when you use this fantastic imaging cable.

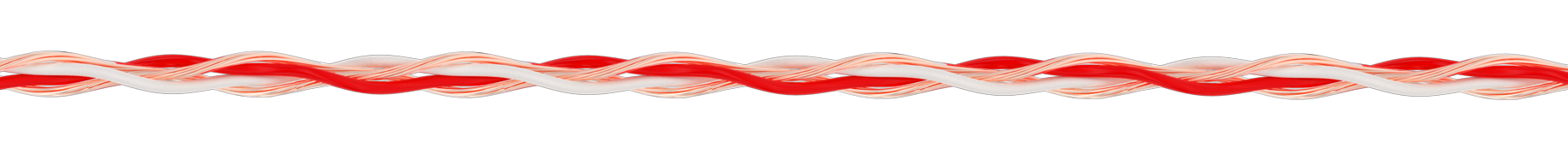

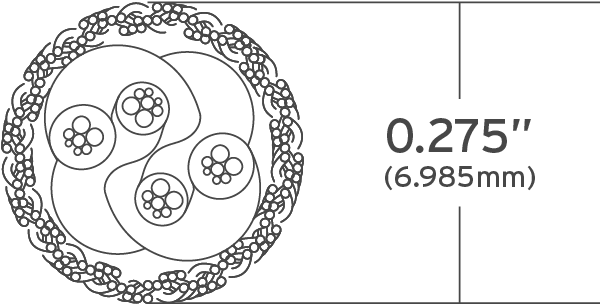

|  | 4 wire quadradic braid |
|  | VariStrand™ copper conductors |
|  | Nitrogen assisted hand soldered termination |
|  | Single & dual layer low loss fluorocarbon dielectric |










                        |  | Ultraplate Black |
|  | WBT-0114 |
|  | WBT-0102 Cu |
|  | XLR |
| Single-Ended (RCA) | |
| (Cp) parallel capacitance: | 78.8 pF / meter |
| (Ls) series inductance: | 0.385 µH / meter |
| (Rdc) dc loop resistance: | 0.037 Ω / meter |
| Balanced (XLR) | |
| (Cp) parallel capacitance: | 33.10 pF / meter |
| (Ls) series inductance: | 1.13 µH / meter |
| (Rdc) dc loop resistance: | 0.081 Ω / meter |
