Connector Options
Ultraplate
BNC Type
"F" Type
WBT-0102 Cu
WBT-0102 Ag
Basic Electrical Specifications
DV-75
DUT: DV-75 1m terminated with Ultraplate RCA type connectors.
| (Cp) parallel capacitance: | 78.10 pF @ 20 kHz |
| (Ls) series inductance: | 0.670 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.163 Ω |
| (Xt) total reactance: | 0.083 Ω @ 20 kHz |
| Frequency response ± 0.5 dB dc - 20 MHz | |

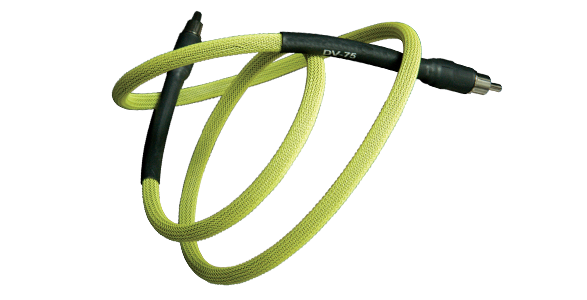

DV-75
An affordable 75 ohm cable that offers most of the performance of our famous D-60 digital cable. The precision construction, including silver-plated conductors and fluorocarbon dielectric, makes it the best choice for critical video and digital applications including DVD. DV-75 is incredible with HDTV, allowing the full measure of this technology to shine through. Composite, component, and RGB+HV formats are available. Termination options include "F", BNC, and RCA type connectors. DV-75 is sold in 1/2 meter increments and is only available factory terminated.
